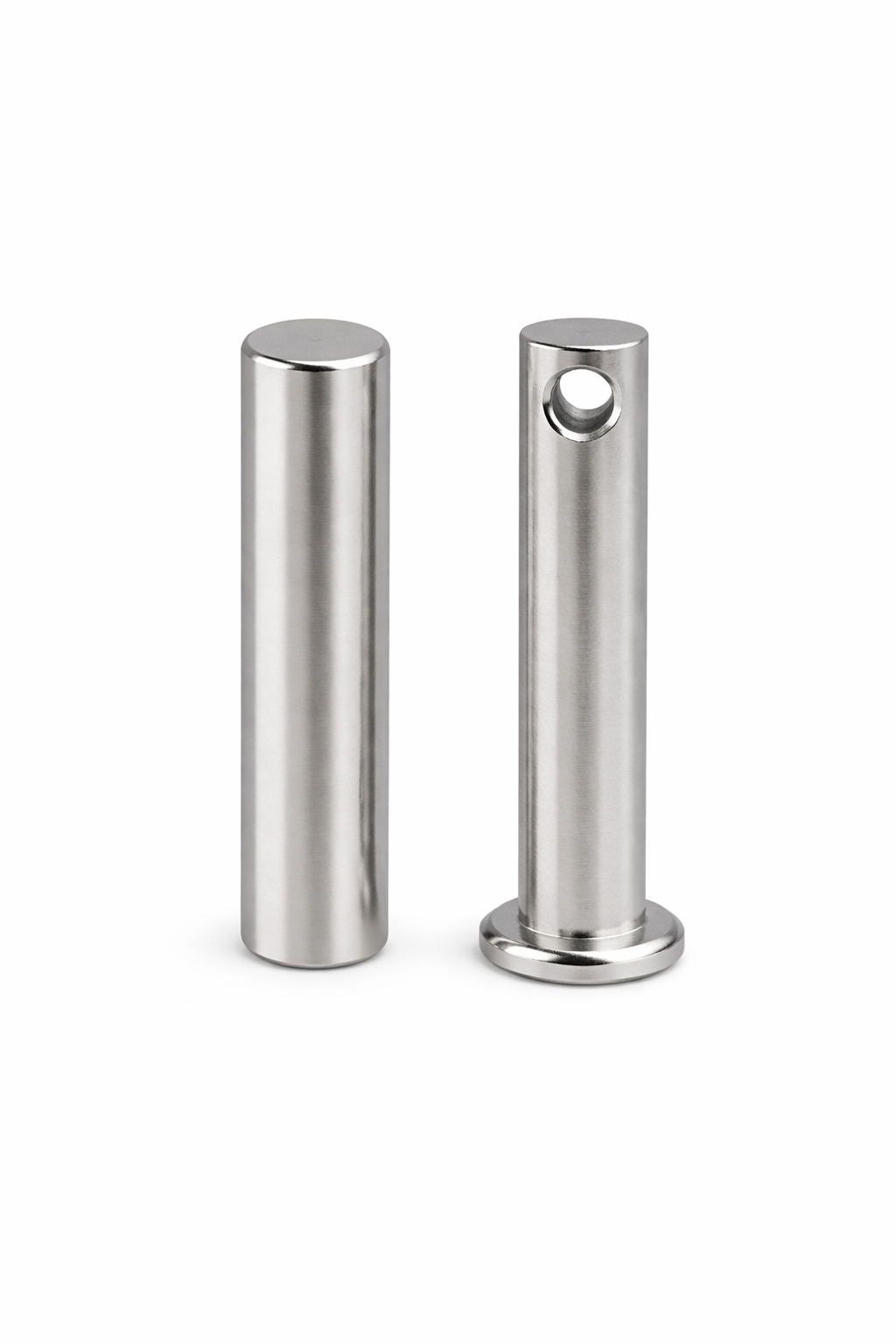

The Samuel Cylinder Pin (part number 4574-011-060) is a precision component used to secure or align a pneumatic or hydraulic cylinder within packaging machinery.
This pin is a genuine Samuel part installed in strapping machines and related equipment built or supported by Samuel PSG Canada.
It functions as a mechanical fastener that maintains proper positioning under repeated motion and load.
Because no published dimensions or material specifications are available, match the part number stamped on your existing pin or listed in the machine parts manual to confirm fitment, or contact Samuel PSG with the machine model and serial number.
This is a regularly stocked item that ships quickly from Samuel PSG.
Samuel Packaging Systems Group is part of Samuel, Son & Co., a metals and industrial products company founded in 1855, and provides in-house replacement-parts support from its Woodridge, Illinois facility..
Manufacturer warrants its new tools and non-powered dispensers to be free of defect in design, material and workmanship. This warranty is limited to 365 days from the date item is shipped to customer.
This warranty applies to all parts associated with new tools and non-powered dispensers but does not apply to parts which, through normal use require replacement during the warranty period. This warranty is limited to repair or replacement F.O.B seller’s point of shipment. In no event shall seller be liable for labor or consequential damagers. There is no implied warranty by the seller for fitness of purpose.
For a warranty claim to be considered buyer must contact seller from the return of the product for inspection. All returns must have sellers motion approval prior to return. all purchase information must be provided to verify warranty peter this information includes, but is not limited to, date of purchase and serial number of machines under warranty.
Q1. What is the Samuel 4574-011-060 cylinder pin?
It is a genuine OEM replacement pin designed to secure or align a cylinder in compatible Samuel PSG packaging equipment.
Q2. What machines does the 4574-011-060 fit?
It is used in select PSG Canada machines. Match the part number on your existing component or refer to the machine parts list, or contact Samuel PSG with the model and serial number to verify fitment.
Q3. Is the 4574-011-060 a genuine Samuel part?
Yes. It is supplied by Samuel as an OEM component for their equipment.
Q4. What are the dimensions or material of this pin?
No published specifications are available. Confirm fitment by matching the exact part number 4574-011-060.
Q5. Is this the same as the 4574-011-050 or other 4574 series parts?
No. Each 4574-series part serves a distinct function. The 4574-011-060 is specifically the cylinder pin and is not interchangeable with nearby numbers such as the equalizer gear or equalizer rack.
Q6. How is the cylinder pin installed?
Installation should be performed by qualified maintenance personnel following the machine manufacturer's service manual and lockout/tagout procedures.
Q7. How quickly does this part ship?
Orders are processed within 1 to 3 business days and ship via UPS with tracking. UPS Ground delivery is estimated at 1 to 5 business days.
Q8. What if I am unsure this is the correct part?
Samuel's parts and service team can confirm the right component for your machine. Contact them with the model and serial number before ordering.
